# Symphony I/O Mk2 Dante + Pro Tools HD Routing

#### Dante + Pro Tools HD Audio Interface Mode

Symphony I/O Dante + Pro Tools HD offers powerful routing options between Symphony I/O modules, Pro Tools HD, and your Dante network.

To set Symphony I/O to Dante + Pro Tools HD audio interface mode from the front panel OLED:

![Screenshot 2024-04-26 at 5.40.43 PM](https://knowledge.apogeedigital.com/hs-fs/hubfs/Screenshot%202024-04-26%20at%205.40.43%20PM.png?width=558&height=320&name=Screenshot%202024-04-26%20at%205.40.43%20PM.png)

**1.** Tap Settings (gear icon).

**2.** Tap the Setup tab at the top of the screen.

**3.** Tap the Audio Interface Mode button, then tap “Yes” in the on-screen prompt. If the Thunderbolt option card is installed, the button toggles through the available AIMs in the order Dante - Dante + PTHD - Thunderbolt. Thus, it may be necessary to set the Audio Interface Mode twice to arrive at the desired AIM.

#### Routing TO Pro Tools HD

When Symphony I/O is set to Dante + PTHD audio interface mode, it's possible to route up to 32 channels to the Pro Tools session inputs. The source of these inputs may be routed from either Symphony I/O's 32 I/O module inputs (when 2 modules are installed) or from 32 Dante Receive channels.

Routing from I/O modules inputs or Dante Receive inputs is set on the front panel OLED in Settings (**1**) \> Setup tab (**2**), using two buttons (**3**) labelled **To PTHD 1-16** and **To PTHD** **17-32**. Each button sets two banks of 8 channels: **To PTHD 1-16** sets the source for Pro Tools inputs 1-8 and 9-16, while **To PTHD 17-32** sets the source for Pro Tools inputs 17-24 and 25-32.

![Screenshot 2024-04-26 at 5.40.53 PM](https://knowledge.apogeedigital.com/hs-fs/hubfs/Screenshot%202024-04-26%20at%205.40.53%20PM.png?width=688&height=330&name=Screenshot%202024-04-26%20at%205.40.53%20PM.png)

In the example shown above, **To PTHD 1-16** is set to *Analog 1-8, Dante 9-16* and **To PTHD 17-32** is set to *Dante 17-24, Dante 25-32*. With this setting, the first 8 I/O module analog inputs are routed to Pro Tools inputs 1-8 while Dante Receive 9-32 is routed to Pro Tools inputs 9-32.

To route all Dante Receive channels to Pro Tools inputs, set To PTHD 1-16  to *Dante 1-8, Dante 9-16*and To PTHD 17-32  to *Dante 17-24, Dante 25-32.*

 To route all I/O module inputs to Pro Tools inputs, set To PTHD 1-16  to *Analog 1-8, Digital 9-16* and To PTHD 17-32  to *Analog 17-24, Digital 25-32.*

If only one I/O module is installed, then To PTHD 17-32 defaults to Dante 17-24, Dante 25-32.

#### Routing FROM Pro Tools

Audio FROM the Pro Tools session is routed *simultaneously* to I/O module outputs and Dante Transmit channels. This routing is fixed.

![Screenshot 2024-04-26 at 5.41.00 PM](https://knowledge.apogeedigital.com/hs-fs/hubfs/Screenshot%202024-04-26%20at%205.41.00%20PM.png?width=688&height=257&name=Screenshot%202024-04-26%20at%205.41.00%20PM.png)

#### Custom Labels in Dante Controller & Pro Tools HD

Once **To Pro Tools** routing has been set, it's recommended to create custom labels for both the Dante Controller Routing grid and Pro Tools I/O Setup. This will make routing between your Pro Tools session, the Dante network, and Symphony I/O modules simple to implement.

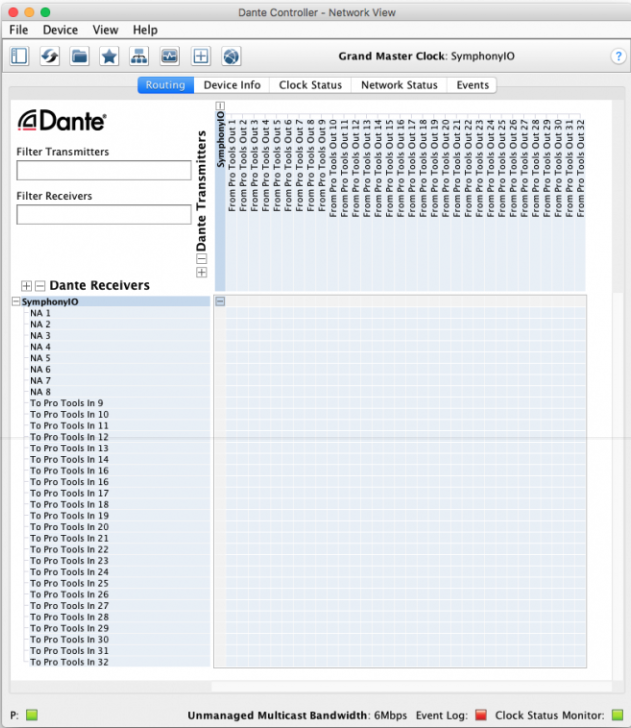

The Dante Controller Routing grid custom labels are shown below based on the **To Pro Tools** settings shown above.

- The first 8 Dante Receivers are set to N.A, or not available. With **To Pro Tools** configured so input 1-8 are sourced from Symphony I/O modules, Dante Receivers 1-8 aren't routed anywhere.
- All Pro Tools outputs are simultaneously transmitted to the Dante network and routed to I/O module outputs.

![Screenshot 2024-04-26 at 5.41.08 PM](https://knowledge.apogeedigital.com/hs-fs/hubfs/Screenshot%202024-04-26%20at%205.41.08%20PM.png?width=672&height=766&name=Screenshot%202024-04-26%20at%205.41.08%20PM.png)

In Pro Tools I/O Setup, the custom Input labels shown below are based on To PTHD 1-16 is set to Analog 1-8, Dante 9-16.

![Screenshot 2024-04-26 at 5.41.16 PM](https://knowledge.apogeedigital.com/hs-fs/hubfs/Screenshot%202024-04-26%20at%205.41.16%20PM.png?width=664&height=450&name=Screenshot%202024-04-26%20at%205.41.16%20PM.png)

Custom Output labels shown below are based 1 I/O module installed - Outputs 1-16 are routed to Dante Transmit and I/O modules outputs simultaneously.

![Screenshot 2024-04-26 at 5.41.22 PM](https://knowledge.apogeedigital.com/hs-fs/hubfs/Screenshot%202024-04-26%20at%205.41.22%20PM.png?width=665&height=450&name=Screenshot%202024-04-26%20at%205.41.22%20PM.png)
