      AD-16x and DA-16x Pinout Diagram for AES and Analog

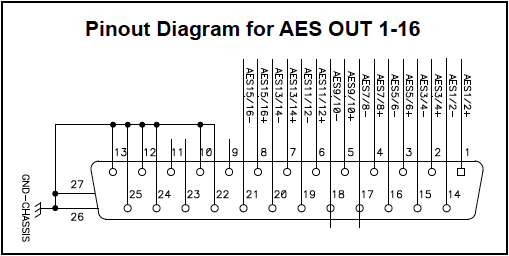

      AD-16x

      Note: This pinout follows the "Yamaha" pinout configuration:

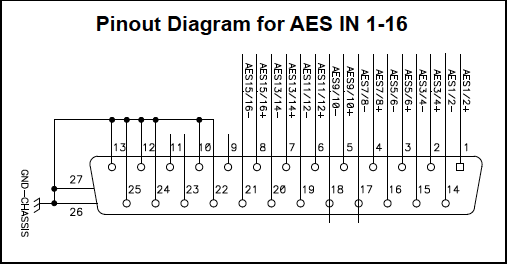

      DA-16x

      Note: This pinout follows the "Yamaha" pinout configuration:

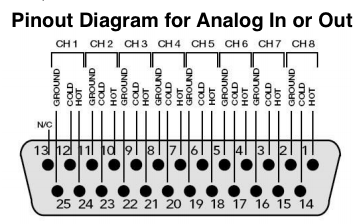

      Analog DB-25 Connector
