      Element Rack Ear Measurement diagrams for models 24, 46, 88

      This article provides the rack ear bracket measurements and diagrams for the Element 24, Element 48, and Element 88.

      UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN INCHES WITH METRIC IN BRACKETS. TOLERANCES:
       .XX  ±.015
       .XXX ± .010
      ANGULAR ± 0° 30'

      Material: 3.2mm Cold Rolled Steel

      Rack ears require longer screws. Measurements 4-40 x 0.50

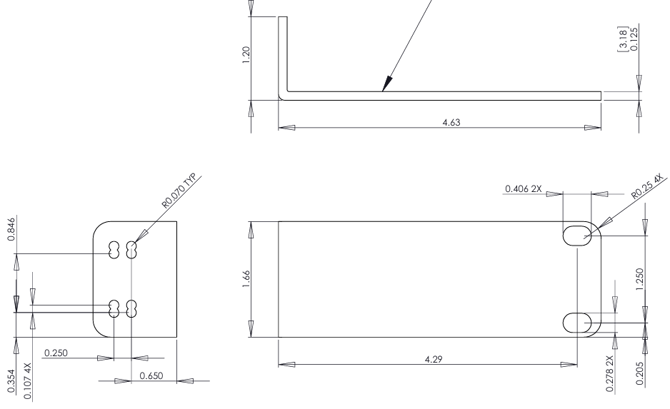

      Element 24 Rack Ears:

      Element 24 Rack Ear Diagram Specifications

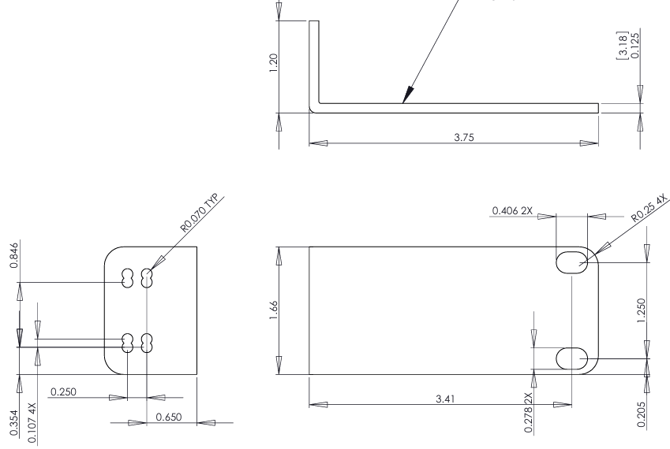

      Element 46 Rack Ears:

      Element 46 Rack Ear Diagram Specifications

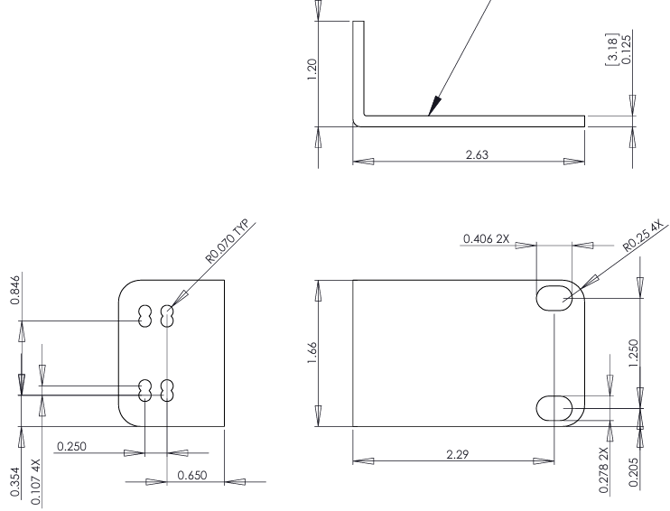

      Element 88 Rack Ears:

      Element 88 Rack Ear Diagram Specifications
